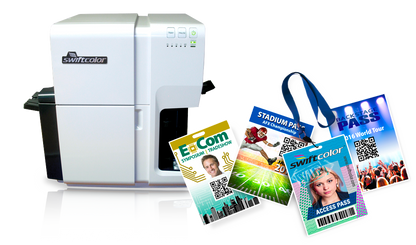

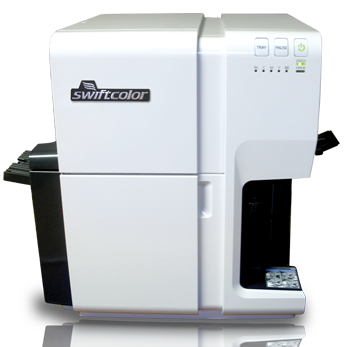

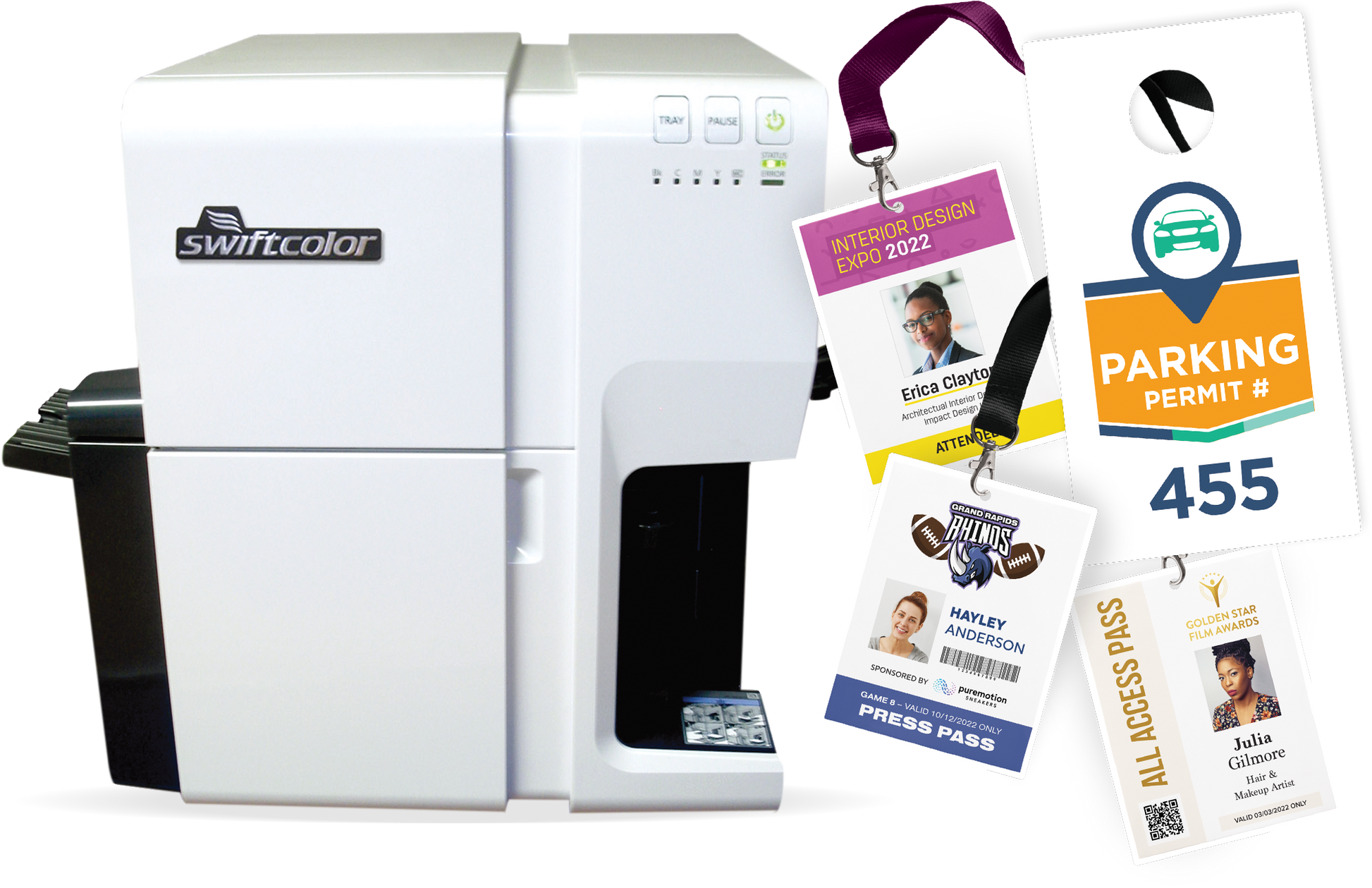

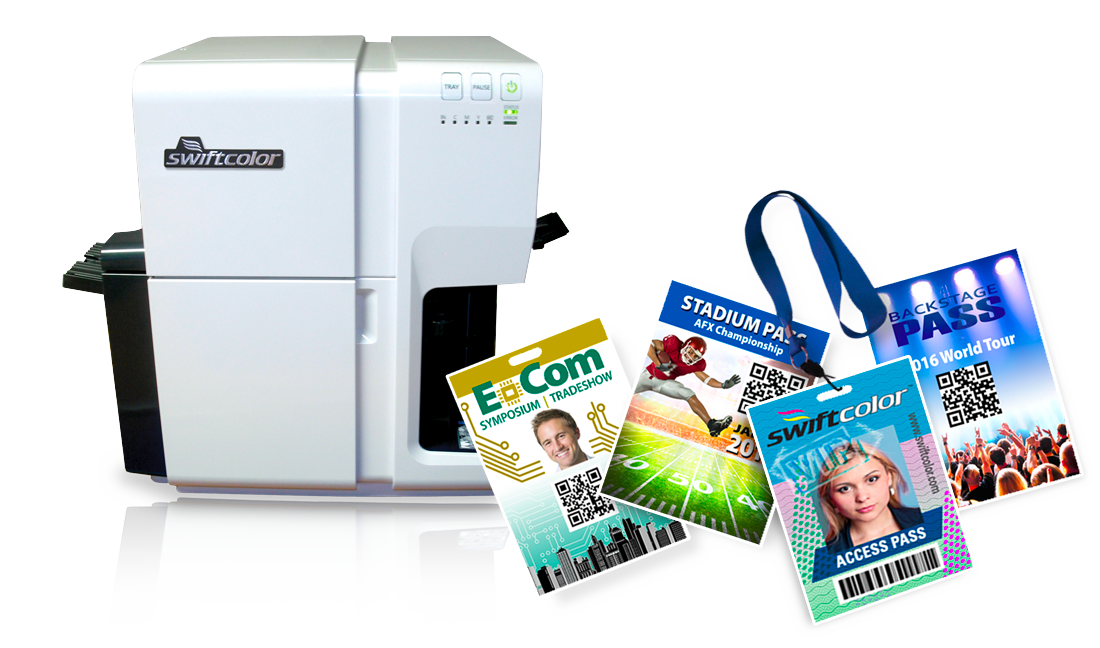

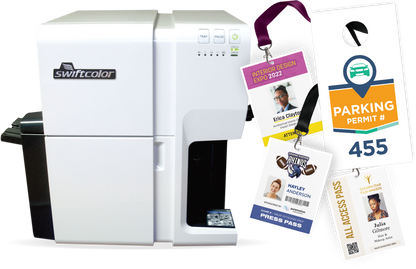

The SwiftColor SCC-4000D Oversized Credential Printer is a specialised card printer built for professional, on-demand accreditation and event badge production. Designed to support large-format credentials, this printer delivers high-resolution full-colour printing at up to 1200 × 1200 dpi, ensuring crisp text, vibrant graphics, and photo-quality images for large ID cards and badges.

With single-pass print head technology, the SCC-4000D is capable of printing oversized cards, such as 3.5″ × 5.5″ credentials, in as little as around 2 seconds per card, making it ideal for busy event environments, trade shows, expos, and on-site badge issuance where speed and quality are essential.

This printer supports a wide range of media, including standard oversized formats like CR100, 3.5″ × 5.5″, 3.5″ × 4″, and 4″ × 6″, and can produce both paper-based and PVC credentials without pre-printing.

Tailored for high-impact visual credentials, the SCC-4000D is perfect for producing staff badges, VIP passes, media and exhibitor credentials, parking tags, door hangers, and premium oversized cards quickly and efficiently.

Key Features

  • High-Resolution Full-Colour Printing up to 1200 × 1200 dpi
  • Rapid On-Demand Output (≈2 seconds per oversized card)
  • Oversized Card Support (up to 3.5″ × 5.5″ and beyond)
  • Single-Pass Inkjet Print-Head Technology for Consistent Quality
  • Supports Paper and PVC Card Media
  • Versatile Credential Printing for Events, Exhibitions, Conferences

Ideal Applications

  • On-Site Event & Access Badges
  • Accreditation & Credentials for Trade Shows
  • VIP & Media Passes
  • Conference & University Event Cards
  • Parking Passes, Door Hangers & Special Event Tickets

At Identiworld, Dubai, we supply the SwiftColor SCC-4000D Oversized Credential Printer backed by local expertise, consumables support, and reliable technical service — making it a powerful choice for organisations that need professional, high-quality credential printing on demand.

Consumables

SwiftColor SCC-4000D Printer Inks

Canon CX-G6400 Printer Inks

SwiftColor Maintenance Cartridge

Downloads

SwiftColor SCC-4000D Datasheet

Canon CX-G6400 Datasheet

Drivers

Care Instructions

Cleaning Best Practices for the Swiftcolor SCC-4000D/Canon CX-G6400

1) Keep the printer in the “safe operating zone” (prevents clogs, jams, and condensation)

  • Run it in the recommended environment: 15–30°C and 10–80% RH, no condensation.
  • Avoid rapid temperature changes (e.g., cold van → warm room). If it’s brought in from cold, let it sit ~1 hour to acclimatise before use to reduce internal condensation risk.
  • Keep dust down & airflow up: avoid dusty areas and don’t block ventilation ports (heat build‑up can cause faults).
  • Stable, level surface: don’t place it on wobbly/inclined surfaces or where it’s exposed to vibration.

Why it matters: most “mystery” print issues on these printers come from condensation, dust ingestion, and temperature/humidity drift — all of which accelerate nozzle clogging and feed errors.

2) Media handling: the fastest way to protect feed rollers + print quality

Use the right media types and keep it clean

  • Use recommended/appropriate media (matte/glossy coated stocks, envelopes, plastic cards) and match driver settings to the media — wrong media/settings can cause poor results and transport staining.
  • SwiftColor documentation specifically recommends exclusive paper for the colour card printer to prevent bleed/blur and reduce the chance of printer trouble.

Load correctly to prevent skew & jams

  • Fan/flap new stacks and align edges before loading.
  • Don’t exceed the load limit mark; if you see feed errors, reduce stack height.
  • Don’t press the side guide too tightly against the stack (can cause jams).

Manage the output stack (especially glossy/high coverage)

  • With high‑density images or glossy paper, the stack may not align well and can jam — remove printed sheets from the auto stacker frequently.

3) Printhead health (most important “care” area)

Print regularly (or the head can dry)

  • Canon guidance notes the printhead can dry/clog if the printer isn’t used for a long time, so periodic printing helps keep nozzles healthy.

Use cleaning levels correctly (light → medium → strong)

  • If prints are faint, it can be paper dust/dust clogging the nozzles; perform Light / Medium / Strong cleaning depending on results.
  • Don’t touch anything during cleaning, and note cleaning cannot run during a print job or while an error is active.
  • Cleaning consumes ink, so only do it when needed (don’t “clean on a schedule” unless you actually have symptoms).
  • If Strong cleaning doesn’t solve it, the documentation advises the printhead may require replacement or further troubleshooting.
Best practice:
  1. Run a test print / inspect output
  2. Try Light cleaning first
  3. Escalate to Medium only if needed
  4. Use Strong as the last step because of ink use

4) Feed roller / transport cleaning (use the cleaning card method correctly)

When you see inconsistent feeding, slipping, or dust build‑up, the SCC‑4000D cleaning card procedure is a safe way to clean transport surfaces:

  • Set driver Paper Size to Business Card 91.0 × 55.0 mm.
  • In Special Settings, set “Ink Pre-fire On The Paper” = OFF.
  • Prepare the cleaning card by peeling only the centre of the release liner and run a blank print with the card loaded as shown.

Why it matters: paper dust and debris are explicitly called out as contributors to nozzle/print issues; keeping the feed path clean improves both feeding and print consistency.

5) Ink tank care (prevents drying, recognition errors, and head damage)

Canon CX‑G6400 guidance includes several strong “do’s/don’ts” that are excellent practice for both models:

  • Replace ink tanks quickly when swapping to avoid drying.
  • Don’t remove an ink tank unless you have to replace it (unnecessary removal can accelerate wear/issues).
  • Store ink tanks cool and dry; avoid high temperatures.
  • For best results, use ink within six months of purchase.
  • The printer may stop before the tank is completely empty to protect print quality; expect a small amount of ink remaining in replaced tanks.

6) Maintenance cartridge (waste ink): handling rules that prevent leaks

  • Replace when indicated (“maintenance cartridge full”).
  • Do not leave the printer with the maintenance cartridge removed for a long time.
  • Do not insert/remove it except when replacing.
  • Handle used cartridges carefully:
  1. Avoid dropping or storing at an angle to prevent ink leakage and staining.
  2. Put used cartridges in the provided bag and seal before disposal (follow local regs).

7) Shutdown, long idle periods, and storage

If the printer won’t be used for a long period:

  1. Remove paper from the feeder tray to prevent discoloration, and store it sealed (bag/box) away from heat/humidity/light.
  2. Disconnect power and interface cables.

8) Moving or shipping (protects the ink system and prevents transit leaks)

Normal “prep for shipping” method (recommended)

  • Use the Service Utility and select [Shipping the printer] to return ink from the ink path to tanks, then follow the prompts (includes removing ink tanks and completing the drainage cycle).
  • Remove ink tanks while shipping.
  • Do NOT remove the maintenance cartridge while shipping.
  • Avoid interrupting the procedure (opening doors etc.) until the completion message appears, otherwise it can fail.

If ink is leaking

  • The shipping doc stresses do not tilt the printer, protect floors/clothing, and use absorbent materials as needed to minimise leakage risk.

Practical “Best Care” Routine (simple & effective)

Daily / before a big print run

  • Keep the printer in the recommended temp/humidity range; avoid sudden temperature changes.
  • Verify media and driver settings match; don’t overload tray.

Weekly (or when feeding becomes inconsistent)

  • Run the cleaning card procedure (correct paper size + pre-fire OFF).

When print quality drops (faint / missing colour)

  • Run Light cleaning, then escalate only if needed; remember cleaning uses ink.

If the printer is idle for long periods

  • Remove paper, store paper sealed, disconnect cables; print periodically if possible to avoid dry nozzles.

Swiftcolor SCC-4000D Consumables

View more

Swiftcolor SCC-4000D Consumables

View more

  • Up to

    100

    Sheets per Minute

  • With

    12

    Month Warranty

  • Standard

    500

    Sheet Input Hopper

Blazing‑Fast, On‑Demand Oversized Credentials

The SCC‑4000D and Canon CX-G64000 use a single‑pass inkjet technology to deliver very high throughput, printing a 3.5″ × 5.5″ full‑colour card in under ~2 seconds, ideal for peak-time event check‑in and rapid badge issuance.

High‑Quality Full‑Colour Output (1200 × 1200 dpi)

Produces sharp, vibrant credentials with 1200 × 1200 dpi resolution using CMYK dye‑based ink, making it well suited for photo badges, barcodes/QR codes, and graphics where clarity matters.

Versatile Media + Practical Connectivity

Prints on SwiftColor paper or PVC cards (with an ink‑receptive layer designed for this print method) and supports common oversized formats like 3.5″×5.5″, CR100, 3.5″×4″, 4″×6″, plus a 4.24″ max print width, with USB 2.0 and Gigabit Ethernet for easy PC or network deployment.

Does it come with a warranty?

Yes. The SwiftColor SCC-4000D and Canon CX-G6400 is supplied with a 12 month manufacturer’s warranty, giving you dependable coverage for everyday ID card printing.

Does it come with consumables?

The SwiftColor is typically supplied without printing consumables (such as ribbons and blank cards), allowing you to choose the options that best match your card designs and volume requirements.

In the box, you can expect the essentials to get started with installation, such as the printer, power/adapter, USB cable, and the included driver.

If you’re purchasing a bundle, consumables may be included depending on the package, so it’s always worth confirming what’s supplied with your specific configuration.

How do I set up the printer once i get it?

Quick & Straightforward Setup

The SwiftColor SCC‑4000D / Canon CX‑G6400 is designed for fast, uncomplicated installation, allowing you to start printing professional credentials with minimal setup time.

1. Position & Power

Place the printer on a stable, level surface in a well‑ventilated area. Connect the supplied power cable to a standard mains outlet and switch the printer on. The system is designed for office and event environments, with no special electrical requirements.

2. Install Ink & Initialise

Insert the supplied CMYK ink tanks into their clearly labelled slots. On first power‑up, the printer automatically performs an initial ink loading process, preparing the internal ink system for printing. This one‑time process ensures consistent colour quality from the start.

3. Driver & Software Installation

Install the printer driver on your Windows PC using the provided software. The driver guides you through setup and allows you to select media sizes, card types, and print quality settings.

The printer can be connected via:

  • USB for direct desktop use, or
  • Ethernet for shared network environments.

4. Load Media

Load your chosen media—paper or plastic cards—into the front‑loading feeder tray. Adjustable guides make it easy to align different card sizes, including oversized formats such as 3.5″ × 5.5″ badges.

5. Ready to Print

Once the driver is installed and media is loaded, the printer is ready for use. Simply select the SCC‑4000D / CX‑G6400 from your application and print on demand. Front‑output card delivery allows for easy collection during high‑volume or live issuance.
