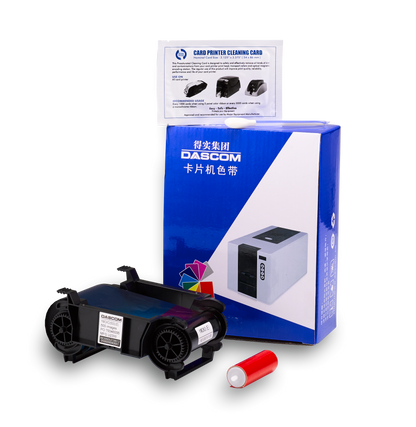

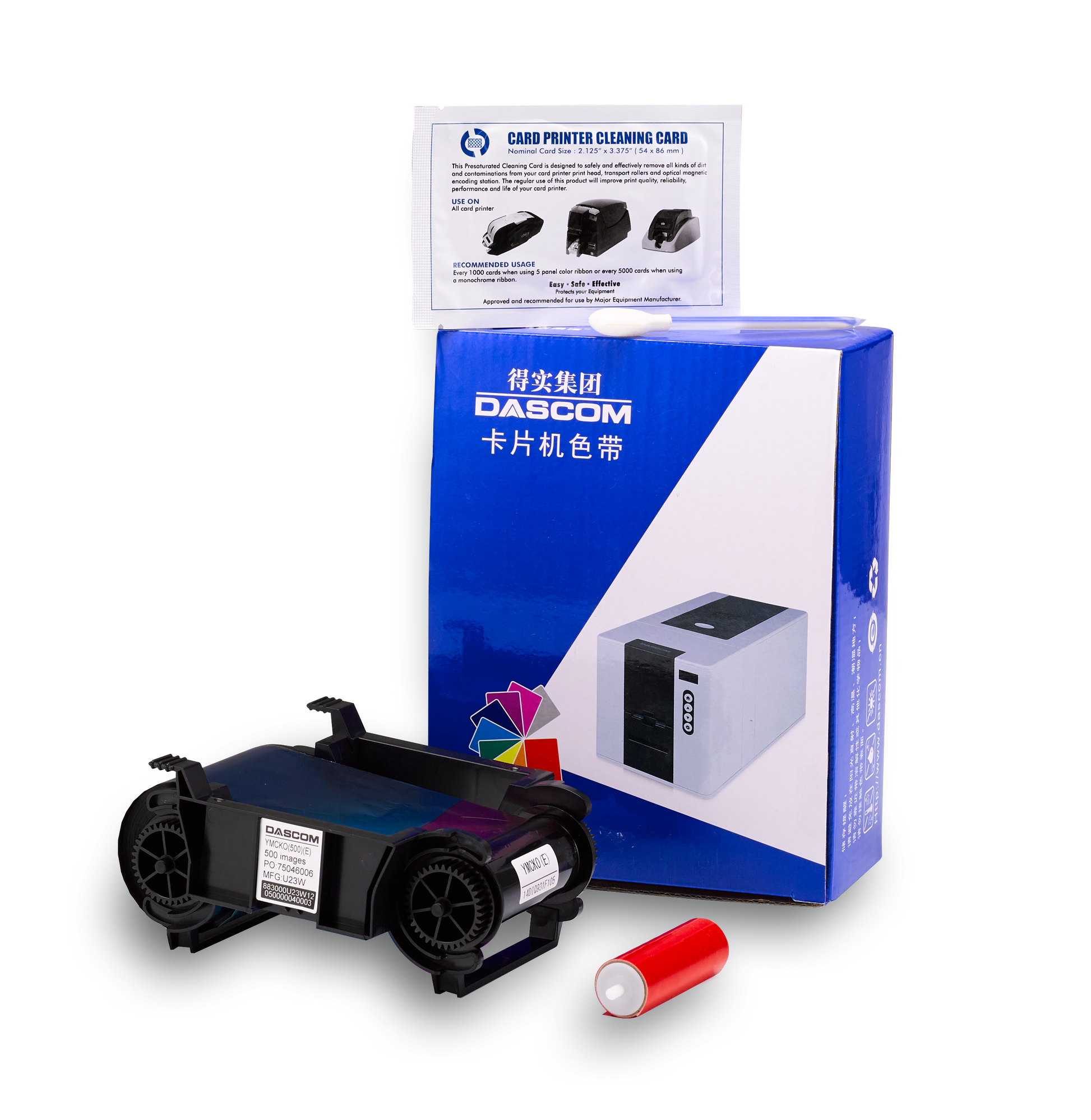

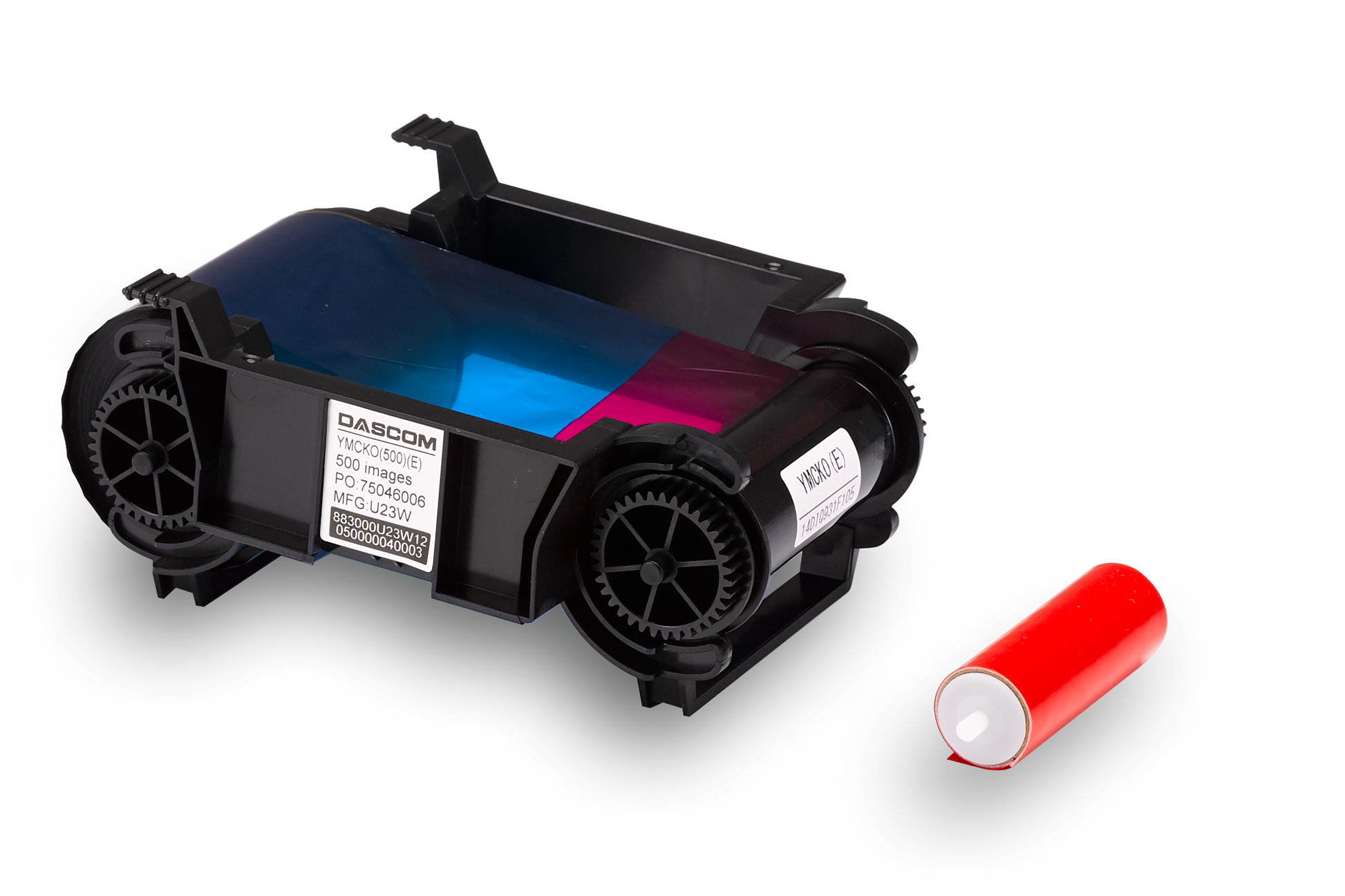

The DASCOM DC-2300 YMCKO Half Panel Colour Ribbon is a genuine consumable designed for the DASCOM DC-2300 Direct-to-Card Printer, offering a cost-effective solution for ID cards that require full colour printing on part of the card surface.

Featuring a YMCKO half-panel configuration, this ribbon prints full colour (Yellow, Magenta, Cyan) on one section of the card—typically for photos or logos—while the black (K) panel prints sharp text or barcodes across the full card. The overlay (O) panel adds a protective clear layer, improving resistance to wear, fading, and handling.

With a yield of up to 600 images, the half-panel ribbon reduces colour ribbon usage, making it ideal for organizations looking to lower printing costs without sacrificing quality.

Key Features

  • YMCKO Half Panel Colour Ribbon

  • Prints Up to 600 Images

  • Compatible with DASCOM DC-2300 Printer

  • Full Colour on Photo/Logo Area + Full-Card Black Text

  • Protective Overlay for Increased Card Durability

  • Cost-Effective Solution for Everyday ID Cards

Ideal Applications

  • Employee & Visitor ID Cards

  • Student & Staff ID Cards

  • Membership & Loyalty Cards

  • Corporate Office Identification

  • Cards with Photo and Text-Heavy Layouts

At Identiworld, Dubai, we supply genuine DASCOM consumables to ensure consistent performance and professional results. The DASCOM DC-2300 YMCKO Half Panel Colour Ribbon is the perfect choice for organizations seeking efficient, high-yield, and economical ID card printing.

Consumables

Dascom DC-2300 Full Colour Printer Ribbon Consumables

Dascom DC-2300 Monochrome Black Printer Consumables

Dascom DC-2300 Monochrome White Printer Ribbons

Downloads

Datasheets

Drivers

Care Instructions

Cleaning Best Practices for the Dascom DC-2300

The Dascom DC-2300 should be cleaned regularly to maintain print quality, reduce card feed issues, and extend the life of key components such as the printhead and transport rollers. As best practice, replace the cleaning roller every time you change the ribbon to help protect the printhead and maintain consistent results.

For routine maintenance, clean the card transport rollers using a Dascom cleaning card approximately every 250 cards (or sooner if cards do not feed smoothly). Cleaning cards are single-use only and must be inserted with the adhesive side facing down each time you run the cleaning cycle.

Always keep cards clean and undamaged to reduce dust and debris entering the print path, and avoid using household cleaners inside the printer. Before performing any maintenance, power off and disconnect the printer, and allow the printhead to cool after printing.

Using Dascom-approved consumables and following the recommended cleaning routine helps ensure reliable feeding, consistent print performance, and minimal downtime.

Dascom DC-2300 Consumables

View more

  • Up to

    180

    Single Sided Cards per hour

  • With

    24

    Month Warranty

  • Standard

    100

    Card Input Hopper

Compact, Everyday ID Printing

The Dascom DC-2300 is a space-saving, direct-to-card printer built for reliable, day-to-day ID card production in office environments. It supports efficient batch printing with a 100-card feeder and produces crisp results at 300 dpi, with selectable higher-resolution modes up to 300 x 600 or 300 x 1200 when needed. With throughput up to 180 cards per hour, it’s well suited to staff IDs, membership cards, and access credentials where consistent output matters.

Simple Operation + Easy Maintenance

The Dascom DC-2300 is designed for straightforward use, with an on-printer control panel and driver tools for settings and maintenance. To maintain print quality and reliable feeding, Dascom recommends cleaning the transport rollers using a cleaning card after around 250 printed cards. leaning cards are single-use and should be inserted with the adhesive side facing down, and the cleaning roller should be replaced with every ribbon change.

Flexible Connectivity & Upgrade Options

The Dascom DC-2300 supports both USB and Ethernet connections, making it easy to install as a local printer or deploy on a network. It can be configured with an optional duplex unit for double-sided printing, depending on your card design and issuing requirements. With support for encoder options and multiple print resolution modes, the DC-2300 provides a practical upgrade path as your ID programme grows.

Does it come with a warranty?

Yes. The Dascom DC-2300 is supplied with a 3-year manufacturer’s warranty, giving you dependable coverage for everyday ID card printing.

Does it come with consumables?

The Dascom DC-2300 is typically supplied without printing consumables (such as ribbons and blank cards), allowing you to choose the options that best match your card designs and volume requirements.

In the box, you can expect the essentials to get started with installation, such as the printer, power/adapter, USB cable, and the included software/driver media (CardEditor and drivers).

If you’re purchasing a bundle, consumables may be included depending on the package, so it’s always worth confirming what’s supplied with your specific configuration.

How do I set up the printer once i get it?

Setting up the Dascom DC-2300 is straightforward. Start by making sure both the printer and your computer are switched off before connecting any data cable. Connect the power supply to the printer, then choose your connection method (USB or Ethernet) using the ports on the rear of the printer.

USB Installation

Connect the DC-2300 to your PC via USB, then run the Windows driver installer from the supplied CD-ROM/software. Follow the installer prompts to select the correct driver and USB port, then complete the installation.

Ethernet Installation

Connect the printer to an Ethernet switch/router, power on the printer, then run the driver installer from the supplied CD-ROM/software. Use the installer’s network search function to find the printer, select it, and (if required) modify the network/IP settings. Once the printer is selected, continue the installer to assign the driver/port and finish setup.
